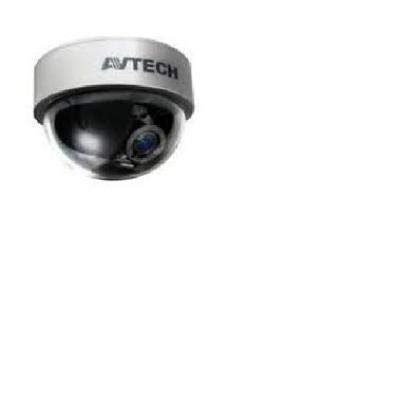

MODEL
AVK522
Pick up Element
1/3" HR color CCD
Number of Pixel
771(H) x 492(V) / 753(H) x 582(V)
Resolution
520 TVL
Min. Illumination
0.15 Lux / F1.4
S/N Ratio
More than 48dB (AGC off)
Electronic Shutter
1/60 (1/50) to 1/100,000 sec
Lens
f4.0mm ~ f9.0mm
Lens Angle
75° ～ 36°
Iris Mode
AES(Default) / AI
IR Shift
Fixed
Smart zoom
YES
White Balance
ATW
Video Output
1.0 Vp-p composite, 75Ω
Power Source (±10%)
DC 12V / 2.9W
Power Consumption (±10%)
240mA
Dimensions (mm)**
124.3(Ø) x 102(H)
Optional Peripheral
AVK-T1
Lưu ý: Giá trên đã bao gồm thuế
