Network

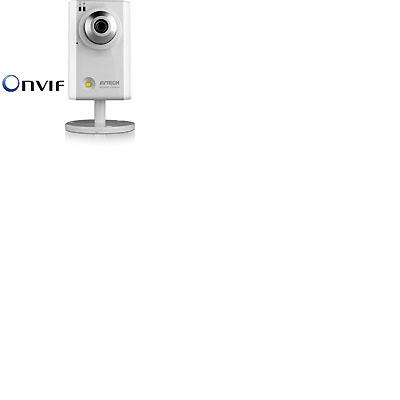

AVN314

Network Compression

H.264 / MPEG4 / MJPEG

Multiple Video streaming (Encode Modes, IPS, Resolution)

3 (H.264, MJPEG, MPEG4)

LAN Port

YES

LAN Speed

10/100 Based-T Ethernet

Supported Protocols

DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP

ONVIF Compatible

YES

Frame Rate

NTSC: 30, PAL: 25

Number of Online Users

10

Security

Multiple user access levels with password protection

Web management

(1) Web browsers, such as Internet Explorer, Mozilla Firefox, Google Chrome, Safari & Opera for single device access, or

(2) Free CMS software, Video Viewer, for up to 16 network cameras control simultaneously

Image Sensor

1/3" live MOS image sensor

Resolution

SXGA to QVGA

Min Illumination

0.1 Lux / F1.5, 0 Lux (LED ON)

Shutter Speed

1 / 60 (1/50) to 1 / 100,000 sec.

S/N Ratio

More than 48dB (AGC off)

Lens

f4.0mm / F1.5

Viewing Angle

75°

White LED

YES

White Balance

ATW

AGC

Auto

IRIS Mode

AES

Microphone

YES

Power Source (±10%)

5V / 1.2A

Operating Temperature

0℃~40℃

Dimensions(mm)**

95 x 59 x 41

Others

Mobile Surveillance

iPad, iPod, iPhone, BlackBerry, Windows Mobile, Symbian & Android

RTC (real-time clock)

YES

Motion Detection

YES

Digital Pan / Tilt / Zoom

YES

Face Detection

YES

Event Notification

FTP / Email / SMS

Minimum Web Browsing Requirements

-Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD

- 256 MB RAM

- AGP graphics card, Direct Draw, 32MB RAM

- Windows 7, Vista & XP, DirectX 9.0 or later

- Internet Explorer 7.x or later
