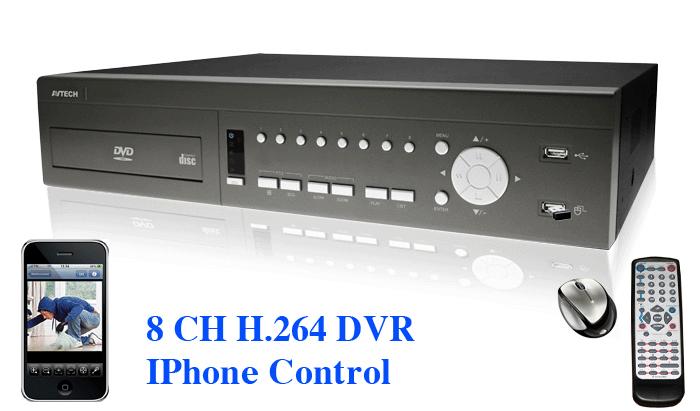

MODEL

AVC796ZB

Video System

NTSC / PAL (auto detection)

Video Compression Format

H.264

Video Input

8 Channels (Composite video signal 1 Vp-p 75Ω BNC)

Video Loop Output

8 Channels (Composite video signal 1 Vp-p 75Ω BNC)

Video Output (BNC)

Main Monitor

For stable display

Call Monitor

For sequence display

Video Output (VGA)

Built-in (Output resolution up to 1600 x 1200)

Audio Input

4 Channels (Mono)

Audio Output

2 Channel (Mono)

Maximum Recording Rate

FRAME

704×480 pixels wth 60 IPS / 704×576 pixels wth 50 IPS

FIELD

704×240 pixels wth 120 IPS / 704×288 pixels wth 100 IPS

CIF

352×240 pixels wth 240 IPS / 352×288 pixels wth 200 IPS

Image Quality Setting

SUPER BEST / BEST / HIGH / NORMAL

Hard Disk Storage

Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB)

Quick Search

Time / Motion / Alarm search mode

SATA Interface

Built-in

Recording Mode

Manual / Timer / Motion / Alarm / Remote

Multiplex Operation

Live display / record / playback / backup / network operations

USB Mouse Control

YES

Motion Detection Area

16 × 12 grids per channel

Motion Detection Sensitivity

3 adjustable parameters for accurate detection

Pre-alarm Recording

YES

Backup Device

DVD Writer (optional) / USB 2.0 flash drive / Network

Web Transmitting Compression Format

H.264

Ethernet

10/100 Base-T. Supports remote control and live view via Ethernet

Remote Surveillance

(Operating System:

Windows 7 / Vista / XP)

CMS: Our self- developerd and free software,“Video Viewer”

Web Browser: Internet Explorer, Mozilla Firefox, Google Chrome & Mac Safari

Media Player: QuickTime

Max. on-line user: 10

Network Protocol

TCP/IP, PPPOE, DHCP and DDNS

Remote Independent Operation

YES

Remote Event Download & Playback

YES

Event Notification

By FTP & E-Mail

R.E.T.R. (Remote Event Trigger Recording)

YES

IR Remote Control

YES (IR receiver built-in)

Mobile Surveillance

YES (Including iPhone, BlackBerry, WinCE, J2ME & Android)

Picture Zoom

2X digital zoom

PTZ Control

YES

Alarm I/O

8 inputs, 1 output

Key Lock (Password Protection)

YES

User Level

Administrator & Operator

Video Loss Detection

YES

Camera Title

Supports Up to 12 letters

Video Adjustable

Hue / Color / Contrast / Brightness

Date Display Format

YY/MM/DD, DD/MM/YY, MM/DD/YY

Daylight Saving

YES

Power Source (±10%)

DC 19V

Power Consumption (±10%)

< 64 W

Operating Temperature

10°C ~ 40°C (50°F~104°F)

Dimensions (mm)**

432(W) × 90(H) × 326(D)

System Recovery

System auto recovery after power failure

Optional Peripherals

Keyboard controller
